HM-1100CT3 / 800CT2 / 1000CT2

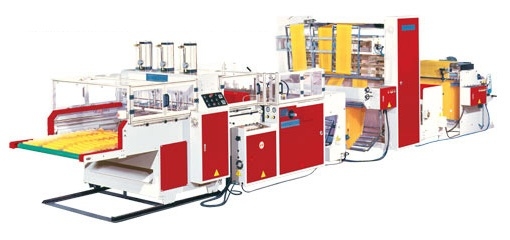

HM-1100CT3
Super-High Speed 3 Lines T-shirt Bag & Calendar Bag Making Machine with Hot Slitting, Side Gusset & Servo-Drive System (600 PCS/MIN)(Non Stop)

Easy to operate with three lines hot slitting T-Shirt & calendar bag making machine, super high speed fully automatic production speed control.

Special Servo-Driven bag feeding design, easy to operate.

Equipped with mulit auto alarms, automatic stop design.

Independent three lines temperature control.

Improved tension auto control to enhance the productivity.

High efficiency on production.

Equipped with multi auto tension control to maintain the stability of the film roll.
HOT SLITTING DEVICE:
It features direct heating design for hot slitting, adjustable heating temperatures, smooth hot slitting output, adjustable speed to handle various film sizes, and easy to maintain.

SIDE GUSSSET DEVICE:
Authentic side gusset design to provide the quick, easy and accurate adjustment on the gusseting depth and the edge angle of gusseting.
HYDRAULIC UNWIND DEVICE:
Hydraulic rack to lift the jumbo film roll automatically.
The maximum diameter of the film roll is 100 cm.
The maximum weight of the film roll is 600 KG.
Provide auto tension control for driving the film by AC motor.
Unwind speed is auto control, following the machine speed.

SEALING KNIFE "TURNOVER" DEVICE:
The Newly Design structure of Sealing Knife is easy to clean.
While cleaning the Sealing Knife, the whole stack of bags can be moved away, and the Sealing Knife canbe turned over.
The Punching Device is driven by Cylinder with pneumatic & hydraulic system.

SERVO FEEDING CONTROL SYSTEM & PRINTING PHOTO CELL:
The new designed Big Monitor Servo feeding Control System can manage the "Set Up" data with high speed.
The unique designed Printing photo cell is able to enhance the productivity, and easy to operate.
SPECIFICATIONS:
Model
HM-1100CT3
Bag Size(mm)
Width(Each Line)
max. 330x3
Length
max.700
Production Speed Cycles/Min
max. 200
Thickness of Film(mm)
0.012~0.025
Heaters
9KW
Power Required
13KW
Machine Dimension
L(M)
9.95
W(M)
2.35
H(M)

2.05
Machine Weight (KG)
4350
Film width (mm)
max.1500
Gross Weight (KG)
4900
Air Compressor (not included)
7.5HP
