HM-1100B5

HM-1100B5

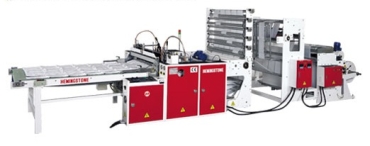

Super High Speed 5 Lines Bottom Sealing Bag Making Machine with Hot Slitting & Servo-drive System(1000 pcs/min)(Non Stop)

This machine can make a big roll into small rolls by using hot slitting. The machine productivity is extremely high.

Suitable to make 1~5 lines hot slitting bottom sealing bags.

This machine can simultaneously produce bottom sealing bags in different bag width.

With a fully automatic computer control servo system, this machine can have both a high speed and a stable productivity.

Suitable to produce multi-line printed bottom sealing bags.
SERVO FEEDING CONTROL SYSTEM & PRINTING PHOTO CELL
The New designed Big Monitor Servo feeding Control System can manage the "set up" data with high speed. The unique designed Printing Photo Cell is able to enhance the productivity, and it is easy to operate.
HOT SLITTING DEVICE
It features direct heating design for hot slitting, adjustable heating temperatures, smooth hot slitting output, adjustable speed to handle various film sizes, and easy to maintain.
SEALING KNIFE "TURNOVER"DEVICE
The Newly Design structure of Sealing Knife is easy to clean.
While cleaning the Sealing Knife, the whole stack of bags can be moved away, and the Sealing Knife can be turned over.
HYDRAULIC UNWIND DEVICE
Hydraulic rack to lift the jumbo film roll automatically.
The max dia. of the film roll is 100 cm.
The max. weight of the film roll is 600 kg.
Provide auto tension control for driving the film by AC motor. Unwind speed is auto control, following the machine speed.
SPECIFICATIONS:
Model
HM-1100B5
HM-1100B5G
No. of Tracks(Max.)
5
5
Film Unwind Width(Max.)(mm)
900
1600
Film Diameter(Max.)(mm)
1000
1000
Bag Size(mm)
Width(each line)(min.)
100
100
Length
250~700
200~700
Production Speed(cycles/min)
200
200
Thickness of Film(total)(mm)
0.01~0.03
0.01~0.03
Film Line Speed Cycles(m/min)
100
100
Power Required(kW)
11
13
Machine Dimensions
L(m)
9
11
W(m)
2.35
2.29
H(m)

1.94
2.2
Machine Weight(kg)
2500
3200
Air Compressor(not included)(hp)
7.5
7.5
Remakes
Without side gusset device
With side gusset device
