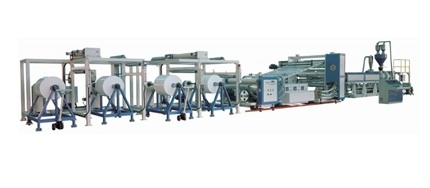

PP Sheet Making Machine is for vacuum / thermo forming purposes, disposable cups and dishes, food and fruit plates, trays. The sheet thickness of PP material is from 0.35mm to 1.4mm.
- Extruder: O75mm, O100mm, O125mm, O125mm with groove feeder, screw L/D=32:1
- Main drive: 45 ~ 56kw, 75 ~ 93kw, 112 ~ 150kw, 262 ~ 300kw
- Extrusion output: 100 ~ 140 kg/hr, 180 ~ 230 kg/hr, 280 ~ 350 kg/hr, 700 ~ 750 kg/hr
- Lip width: 1,000mm, 1,400mm, 1,700mm
- Product width: 800mm, 1,200mm, 750mm x 2
- Product thickness: 0.5mm ~ 1.2mm
- Roller width: 1,100mm, 1,500mm, 1,800mm
- Roller diameter: 350mm, 400mm, 450mm
- Line speed: 0.5 ~ 12 M/min
- Winding diameter: 450mm, 1,000mm, 1,500mm
