APPLICATION
Mono-layer and Multi-layer Sheet Extrusion Systems for up to 5 layers
Versatile and reliable downstream equipment

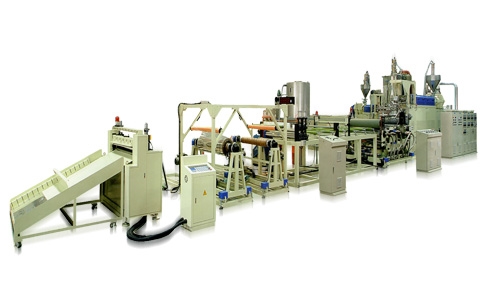

Complete Sheet Extrusion Line with extruders 55-200 mm
Processing Capabilities:
ABS, PE, PP, PS, HIPS, PET, PC, PMMA, and other thermoplastic materials.
INTRODUCTION
Custom engineered roll stack designs include adjustable, vertical, 45" angled and horizontal models.
Wide range of embossing & polishing calenders to meet almost all the numberous and varied production requirement.
Quick heat transfer characteristics and temperature accross the whole roll width.
View Thickness Gauging System
Manual Control or Automatic Control Incorporated to Auto Die.
Other Options Available :
Fully Automatic and Integrated Gravimetric System
Edge Trim Recycling with Full Automation
Multi-Component Blenders
Lamination Systems
Continuous Screen Changers
Corona Surface Treaters
Dehumidifiers
Chillers
Multi-Manifold Coextrusion Die
A flexible lip adjusting system to provide an uninterrupted flow surface in the lip area. Closely spaced lip adjusting bolts act against polymer pressure and the natural spring of the metal. The lip is flexed to adjust the gap, the bolts always remaining in compression eliminate thread slack and resulting loss of sensitivity inherent to push-pull systems.
Ultraflow Coextrusion Feedblock
All stainless steel construction - Provides corrosion resistance
Split body design - Ease of cleaning
Streamlined flow surface - Minimizes residence time - Reduces gel formation
Modular design - Expandable from two to seven layers
Flow turning modules - Uniformly distributes layers
Optional valves - Direct skin layer from top to bottom
Removable flow spool for layer sequencing is available
Multi-Manifold Sheet Dies
Multi-manifold dies are the newest generation of sheet dies. These advanced products can be supplied with a restrictor bar for each extrusion layer to accommodate major shifts in viscosity. Multi-manifold sheet dies provide very polymer usage without sacrificing physical properties
Feed Block
Cloeren's patented three-layer Variable Geometry (VG™) Feedblocks offer optimum flexibility for flat coextrusion applications. Externally adjusting vanes enables processors to adjust for layer-structure changes without interrupting operations. Its unique distribution pins optimize layer uniformity
Gear Pump
The optimized flow inlet and outlet geometries of this pump, makes it suitable for a wide range of applications.
The bearings and the channels are designed to minimize the residence time and for a stress free flow of the melt through the pump. Therefore the pump can be used in applications with thermosensitive, transparent and as well easy degradable polymers.
Gear Pump
Eliminates discharge fluctuations caused by variations of the pressure and/or viscosity
Reliability of the process enhanced
Increased productivity
Closer tolerances band
Material savings
High reliability of the process
